Interface 7 Segment Display to AVR Atmega32 using CD4511B

Seven Segment Display operation using Atmega32 and CD4511B

Seven segment display is a frequently used device found in several applications such as queuing systems, some types of clocks and calculators. So in this article, we explain how to Interface a 7 Segment Display to the AVR Atmega32 MCU and get it working.

Note: We have published several other interfacing tutorials of 7 segment displays like Interfacing 7 segment to 8051, Interfacing  Arduino to 7 Segment Display, and a Proteus Tutorial on 7 Segment display.

Let’s first have a look on the seven-segment display and its pinout.

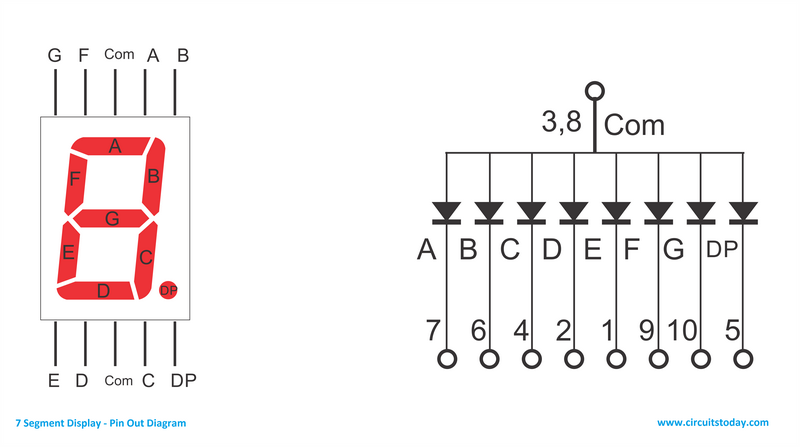

Pin Out Diagram of 7 Segment Display

The Seven-segment consists of 7 LEDs arranged in a way that allows constructing a display of the numbers of (0-9). It has 10 pins assigned as follows:

  1. 7 pins act as the Vcc for the 7 LEDs (1 pin for each LED, assuming that we are dealing with common cathode seven segment display)
  2. 1 pin is the VCC for decimal point display at the lower right corner.
  3. 2 pins represent a common ground to all the LEDs.
seven segment LED display

7 segment LED display

There are 2 types of seven-segment, that are “common anode” and “common cathode”. In common anode seven segment, VCC is common for all the LEDs and each has a different pin for the low voltage (that is ground). In the case of a common cathode, all LEDs have a common ground and each has a different pin for the high voltage (Vcc). In this tutorial, we will be using a common cathode 7 Segment display.

Interfacing 7 Segment Display with AVR Atmega32:

The straightforward way to do that is to connect each pin from the seven-segment to a pin on the MCU and use the software to control the LEDs lighting and display the numbers we want. However, this way is not efficient as it wastes a lot of valuable MCU pins. Imagine that you want to connect 2 seven-segment devices to display the numbers (0-99), in this case, you will need to use 14 pins of the MCU I/O pins which may leave you in a shortage of pins for other external peripherals.

Fortunately, there is a better way to do it, using the CD4511B IC (BCD to 7 Segment Decoder), shown in the below picture.

CD4511B-IC-PIC

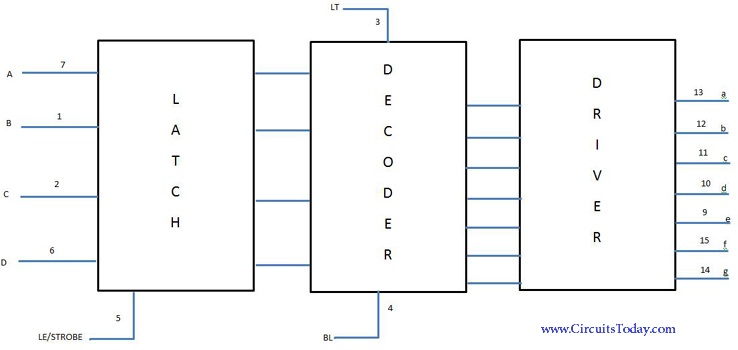

This is an easy to use IC that takes the number you want to display as an input in BCD (Binary Coded Decimal) format and outputs the 7 bits needed to illuminate the seven-segment with the desired number. The below diagram clarifies the input and output to the CD4511B.

CD4511-BlockDiagram_2

The input pins (A, B, C, D) take the input number as BCD and the output pins (a, b, c, d, e, f, g) are the 7 bits output that will be connected to the seven-segment as will be demonstrated in the schematic.

For more clarity, the below table shows the inputs and corresponding outputs of the CD4511B:

Hard wired Input coming from MCU Output to the seven-segment
LE BL LT D C B A a b c d e f g Number displayed Comment
X x 0 x X x x 1 1 1 1 1 1 1 8 Used for testing the display
X 0 1 x X x x 0 0 0 0 0 0 0 Blank Used for testing the display
0 1 1 0 0 0 0 1 1 1 1 1 1 0 0
0 1 1 0 0 0 1 0 1 1 0 0 0 0 1
0 1 1 0 0 1 0 1 1 0 1 1 0 1 2
0 1 1 0 0 1 1 1 1 1 1 0 0 1 3
0 1 1 0 1 0 0 0 1 1 0 0 1 1 4
0 1 1 0 1 0 1 1 0 1 1 0 1 1 5
0 1 1 0 1 1 0 0 0 1 1 1 1 1 6
0 1 1 0 1 1 1 1 1 1 0 0 0 0 7
0 1 1 1 0 0 0 1 1 1 1 1 1 1 8
0 1 1 1 0 0 1 1 1 1 0 0 1 1 9
0 1 1 1 0 1 0 0 0 0 0 0 0 0 Blank
0 1 1 1 0 1 1 0 0 0 0 0 0 0 Blank
0 1 1 1 1 0 0 0 0 0 0 0 0 0 Blank
0 1 1 1 1 0 1 0 0 0 0 0 0 0 Blank
0 1 1 1 1 1 0 0 0 0 0 0 0 0 Blank
0 1 1 1 1 1 1 0 0 0 0 0 0 0 Blank

Using the CD4511B IC allows us even to connect more than 1 seven-segment on the same 4 pins of the MCU. In such case, we will add a BJT transistor between the cathode of each seven-segment and the ground and use the base of this BJT as an enable bit for each seven-segment as demonstrated in the schematic.

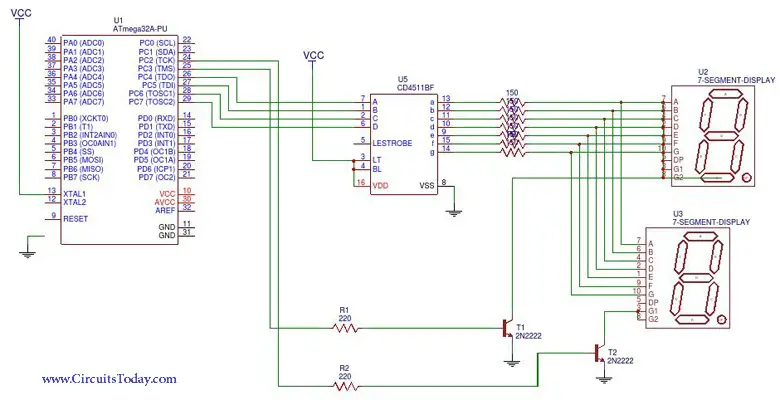

Interface AVR to 7 Segment Display

In such case, we save around 10 pins, as we connect 2 seven-segments with only 4 MCU pins.

Now, according to the above schematic, in order to illuminate the two seven-segments at the same time, we need to follow these steps:

  1. Write BCD of the number we want to display on the first seven-segment on PORTC pins (PC4-7)
  2. Write 1 to PORTC pin 2 (PC2) to enable the first segment.
  3. Allow a delay of 10 ms.
  4. Write 0 to PORTC pin 2 (PC2) to disable the first seven-segment.
  5. Write BCD of the number we want to display on the second seven-segment on PORTC pins (PC4-7)
  6. Write 1 to PORTC pin 3 (PC3) to enable the second seven-segment.
  7. Allow a delay of 10 ms.
  8. Back again to step1.

You might think that this sequence will cause the seven-segments to blink as we enable and disable them, but in fact you will not notice this blinking.

The persistence of the seven-segments LEDs will cause it to stay illuminated after being disabled until it is enabled again in the next cycle.

In our program, we will define a counter that counts from 0 to 99 and displays the counting on the two seven-segments connected as above.

Below is the program code, circuit picture and video.

Program/Code

#define F_CPU 8000000UL

#include <avr/io.h>

#include <util/delay.h>

void Sev_Seg (char Number);


void Sev_Seg (char Number) // Function to write the BCD of a number to the seven segment pins (PC4-7)

{

  switch(Number)

  {

         case 0:

         {
                PORTC&=~(1<<5)&~(1<<6)&~(1<<7)&~(1<<4);

                break;

         }

         case 1:

         {
                PORTC|=(1<<4);

                PORTC&=~(1<<5)&~(1<<6)&~(1<<7);

                break;

         }

         case 2:

         {
              PORTC|=(1<<5);

              PORTC&=~(1<<4)&~(1<<6)&~(1<<7);

              break;

         }

         case 3:

         {
                PORTC|=(1<<4)|(1<<5);

                PORTC&=~(1<<6)&~(1<<7);

                break;

         }

         case 4:

         {
                PORTC|=(1<<6);

                PORTC&=~(1<<4)&~(1<<5)&~(1<<7);

                break;

         }

         case 5:

         {
                PORTC|=(1<<4)|(1<<6);

                PORTC&=~(1<<5)&~(1<<7);

                break;

         }

         case 6:

         {

                PORTC|=(1<<5)|(1<<6);

                PORTC&=~(1<<4)&~(1<<7);

                break;

         }

         case 7:

         {

                PORTC|=(1<<4)|(1<<5)|(1<<6);

                PORTC&=~(1<<7);

                break;

         }

         case 8:

         {

                PORTC|=(1<<7);

                PORTC&=~(1<<4)&~(1<<5)&~(1<<6);

                break;

         }

         case 9:

         {

                PORTC|=(1<<7)|(1<<4);

                PORTC&=~(1<<5)&~(1<<6);

                break;

         }  } }



int main(void)

{

    char count=0; // This is the variable that will be displayed on the seven-segment

       char i=0;

       DDRC|=0b11111100; // Set direction for port B as output

       PORTC&=0b00000011; // Set the all the seven segment pins to 0 in the beginning


       while(1)

    {

       for (count=0;count<=99;count++) // This loop is to increment the number that will be displayed

              {




                     for (i=0;i<=17;i++) // This loop introduces some more delay so that the counting is slow enough for our eyes to recognize it

                     {

                           Sev_Seg(count%10); //write the first digit of "count" value to the first seven-segment

                           PORTC|=(1<<2); //Enable the first seven-segment

                           _delay_ms(10);

                           PORTC&=~(1<<2); //disable the first seven-segment

                           Sev_Seg(count/10); //write the second digit of "count" value to the second seven-segment

                           PORTC|=(1<<3); //Enable the second seven-segment

                           _delay_ms(10);

                           PORTC&=~(1<<3); //disable the second seven-segment

  } }   } }

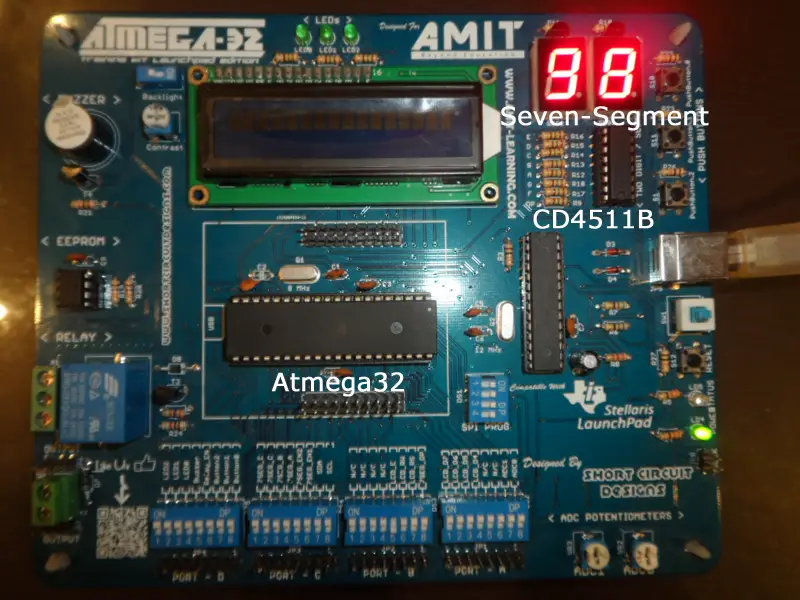

Photograph

7-Segment_AVR
