Choppers – A general introduction

Arun January 31, 2012 10 Comments


 A chopper is basically a dc to dc converter whose main function/usage is to create adjustable dc voltage from fixed dc voltage sources through the use of semiconductors.

Types of choppers

The main classification of the types of choppers is given in another post. Take a look – TYPES OF CHOPPER CIRCUITS

There are two types of choppers – AC and DC.

AC Link Chopper

In the case of an ac link chopper, first dc is converted to ac with the help of an inverter. After that, AC is stepped-up or stepped-down by a transformer, which is then converted back to dc by a diode rectifier. Ac link chopper is costly, bulky and less efficient as the conversion is done in two stages.

Ac chopper diagram

DC Chopper

A DC chopper is a static device that converts fixed dc input voltage to a variable dc output voltage directly.  A chopper can be said as dc equivalent of an ac transformer as they behave in an identical manner. This kind of choppers are more efficient as they involve one stage conversion. Just like a transformer, a chopper can be used to step up or step down the fixed dc output voltage. Choppers are used in many applications all over the world inside various electronic equipments. A chopper system has a high efficiency, fast response and a smooth control.

Dc chopper diagram

Principle of Chopper Operation

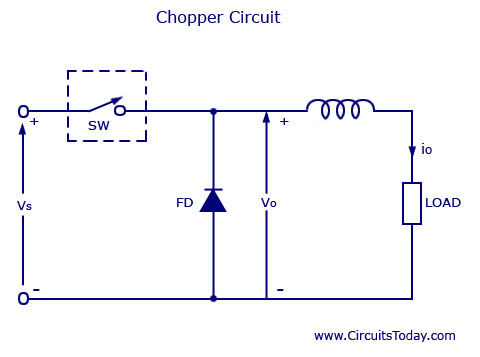

A chopper can be said as a high speed on/off semiconductor switch. Source to load connection and disconnection from load to source happens in a rapid speed.  Consider the figure,  here a chopped load voltage can be obtained from a constant dc supply of voltage, which has a magnitude Vs. Chopper is the one represented  by “SW” inside a dotted square which can be turned on or off as desired.

chopper circuit

Output Voltage and Current Waveforms

chopper waveforms

Let us now take a look of the output current and voltage wave forms of a chopper. During the time period Ton   the chopper is turned on and the load voltage is equal to source voltage Vs. During the interval Toff  the chopper is off and the load current will be flowing though the freewheeling diode FD . The load terminals are short circuited by FD and the load voltage is therefore zero during Toff.  Thus, a chopped dc voltage is produced at the load terminals. We can see from the graph that the load current is continuous. During the time period Ton, load current rises but during  Toff   load current decays .

Average load Voltage is given by

  V0    = Ton/ (Ton +Toff) * Vs   = (Ton/T) V = A Vs………………(1.0)

Ton  : on -time

Toff  :  off- time

T = Ton +Toff= chopping period

 A =  Ton /T   = duty cycle

So we know that the load voltage can be controlled by varying the duty cycle A.  equation 1.0 shows that the load voltage is independent of load current it can be also written as

 V0 = f. Ton .Vs

 f= 1/T = chopping frequency

Step – up Choppers

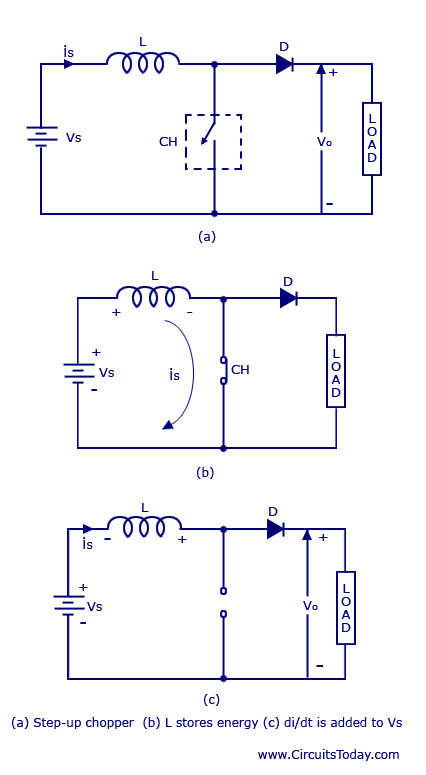

In the case of the chopper circuit (Refer figure named – “chopper circuit”) shown in beginning of this article, V0  or the average output voltage is less than the input voltage Vso this type of chopper is called a step down chopper. For a step-up chopper we can obtain an average output voltage V0 greater than input voltage.  Figure (a) shows the elementary form of a step-up chopper.

Working Principle of a Step-up Chopper

In step-up chopper a large inductor, L is in series with the source voltage Vs. This forms a closed path as shown in the figure (b). During the time period Ton the chopper is on the inductor stores energy. When the chopper is turned off the current is forced to flow through the diode and load for a time Toff and as the inductor current cannot die suddenly. When the current decreases the polarity of the emf induced in L is reversed. Fig (c). As a result the total voltage available across the load is given by the equation V0   = V+ L (di/dt) . The voltage V0 exceeds the source voltage and hence the circuit acts as a step-up chopper and the energy which is stored in L is released to the load.

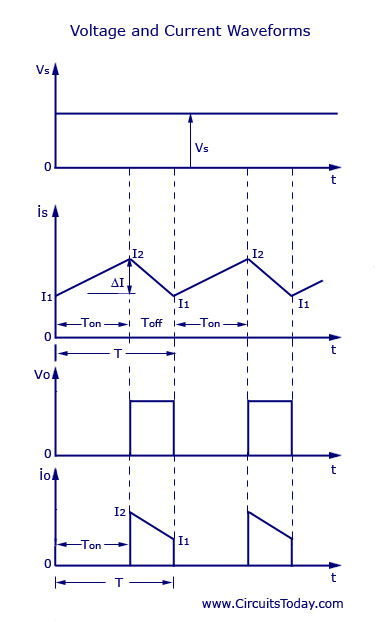

Voltage and current waveforms

When the chopper is turned ON the current through the inductance L will increase from I1 to I2. As the chopper is on the source voltage is applied to L that is  vL = V .

When the chopper is OFF, the KVL for the  figure (c) can be written as

vL – V0+Vs =0 or vL =V0 -V where vL  is the voltage  across L. Variation of source voltage vS , source current IS  , load voltage v  and load current iO  is sketched in the fig  (d) . Let us assume that the variation of output current is linear, the energy input to inductor from the source, during the time period Ton , is

                                       Win= Vs (I1+I2/2) Ton

During the time Toff  the chopper is off, so the energy released by the inductor to the load is

Woff = (V0-Vs)(I1+I2/2).Toff

Let us assume that the system is lossless, then the two energies say Win  and Woff  are equal.

So equating these two we will get

Vs (I1+I2/2) Ton     =   (V0-Vs)(I1+I2/2).Toff

Vs Ton     =  (V0-Vs) Toff

V0Toff   = Vs (Toff   + Ton) = Vs .T

V0 = VS (T/Toff)  = V (T/T-Ton) =VS (1/(1-A)                        ………….(2.0)

From the equation 2.0 we can see that the average voltage across the load can be stepped up by varying the duty cycle. If the chopper in the figure (a) is always off, A=0 and V0= Vs. If the chopper is always on, A =1 and V0 = infinity as we can see from the graph. In practical applications the chopper is turned on and off so that the required step-up average output voltage, more source voltage is obtained.

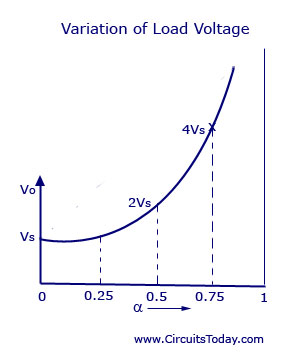

 Figure shows  variation of load voltage V0 with duty cycle .

Application of Step-up Chopper

Figure shows regenerative braking of dc motor.

The principle of step-up chopper can be used for the regenerative braking of DC motors. The armature voltage Ea  is analogy to the VS   and voltage V0 is the dc source voltage. When the chopper is on the inductor L stores the energy and when it is off the inductor release the energy.  If  Ea / (1-A) exceeds V0 , the dc  machine will work as a dc generator and the armature current will flow in a direction opposite to the motoring mode. As the power now is flowing from dc machine to the source V0 it will cause regenerative breaking of the dc motor.  Even at decreasing motor speeds, regenerative breaking can be provided as the motor armature Ea is directly proportional to the field flux and motor speed.
