Full wave bridge rectifier

jojo January 23, 2018 25 Comments

A Full wave rectifier is a circuit arrangement which makes use of both half cycles of input alternating current (AC) and converts them to direct current (DC). In our tutorial on Half wave rectifiers, we have seen that a half wave rectifier makes use of only one-half cycle of the input alternating current. Thus a full wave rectifier is much more efficient (double+) than a half wave rectifier. This process of converting both half cycles of the input supply (alternating current) to direct current (DC) is termed full wave rectification.

Full wave rectifier can be constructed in 2 ways. The first method makes use of a center tapped transformer and 2 diodes. This arrangement is known as Center Tapped Full Wave Rectifier. The second method uses a normal transformer with 4 diodes arranged as a bridge. This arrangement is known as a Bridge Rectifier.

Full Wave Rectifier Theory

To understand full wave bridge rectifier theory  perfectly, you need to learn half wave rectifier first. In the tutorial of half wave rectifier we have clearly explained the basic working of a rectifier. In addition we have also explained the theory behind a pn junction and the characteristics of a pn junction diode.

Full Wave Rectifier Working & Operation

The working & operation of a full wave bridge rectifier is pretty simple.  The circuit diagrams and wave forms we have given below will help you understand the operation of a bridge rectifier perfectly.  In the circuit diagram, 4 diodes are arranged in the form of a bridge. The transformer secondary is connected to two diametrically opposite points of the bridge at points A & C.  The load resistance RL  is connected to bridge through points B and D.

Full wave bridge rectifier circuit

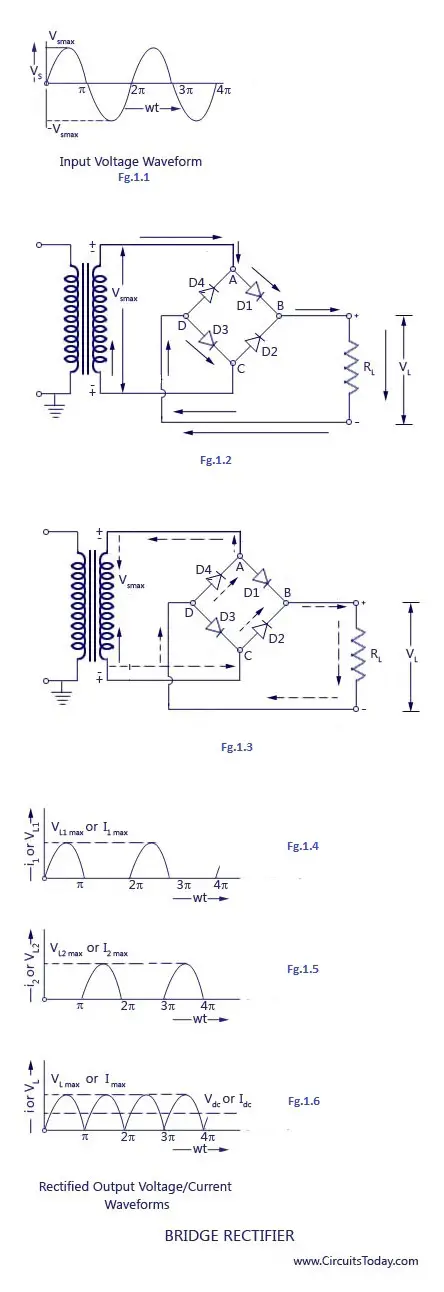

Full Wave Bridge Rectifier – Circuit Diagram with Input and Output Wave Forms

During the first half cycle

During first half cycle of the input voltage, the upper end of the transformer secondary winding is positive with respect to the lower end. Thus during the first half cycle diodes D1 and D3 are forward biased and current flows through arm AB, enters the load resistance RL, and returns back flowing through arm DC. During this half of each input cycle, the diodes D2 and D4 are reverse biased and current is not allowed to flow in arms AD and BC. The flow of current is indicated by solid arrows in the figure above. We have developed another diagram below to help you understand the current flow quickly. See the diagram below – the green arrows indicate beginning of current flow from source (transformer secondary) to the load resistance. The red arrows indicate return path of current from load resistance to the source, thus completing the circuit.

Current path in Bridge Rectifier

Flow of current in Bridge Rectifier

During the second half cycle

During second half cycle of the input voltage, the lower end of the transformer secondary winding is positive with respect to the upper end. Thus diodes D2 and D4 become forward biased and current flows through arm CB, enters the load  resistance RL,  and returns back to the source flowing through arm DA. Flow of current has been shown by dotted arrows in the figure. Thus the direction of flow of current through the load resistance RL remains the same during both half cycles of the input supply voltage.  See the diagram below – the green arrows indicate beginning of current flow from source (transformer secondary) to the load resistance. The red arrows indicate return path of current from load resistance to the source, thus completing the circuit.

Flow of current in Full wave rectifier

Path of current in 2nd Half Cycle

Peak Inverse Voltage of a Full wave bridge rectifier:

Lets analyse peak inverse voltage (PIV) of a full wave bridge rectifier using the circuit diagram. At any instant when the transformer secondary voltage attains positive peak value Vmax, diodes D1 and D3 will be forward biased (conducting) and the diodes D2 and D4 will be reverse biased (non conducting). If we consider ideal diodes in bridge, the forward biased diodes D1 and D3 will have zero resistance. This means voltage drop across the conducting diodes will be zero. This will result in the entire transformer secondary voltage being developed across load resistance RL.

Thus PIV of a bridge rectifier = Vmax (max of secondary voltage)

Bridge Rectifier Circuit Analysis

The only difference in the analysis between full wave and centre tap rectifier is that

  1. In a bridge rectifier circuit two diodes conduct during each half cycle and the forward resistance becomes double (2RF).
  2. In a bridge rectifier circuit Vsmax is the maximum voltage across the transformer secondary winding whereas in a centre tap rectifier Vsmax represents that maximum voltage across each half of the secondary winding.

The different parameters are explained with equations below:

  1. Peak Current

Instantaneous value of the voltage applied to the rectifier is given as

vs =  Vsmax Sin wt

 If the diode is assumed to have a forward resistance of RF ohms and a reverse resistance equal to infinity, then current flowing through the load resistance is given as

i1 = Imax Sin wt and i2 = 0 for the first half cycle

and i1 = 0 and i2 = Imax Sin wt for second half cycle

The total current flowing through the load resistance RL, being the sum of currents i1 and i2 is given as

i = i1 + i2 = Imax Sin wt for the whole cycle.

Where peak value of the current flowing through the load resistance RL is given as

Imax = Vsmax/(2RF + RL)

2.    Output Current

Since the current is the same through the load resistance RL in the two halves of the ac cycle, magnitude od dc current Idc, which is equal to the average value of ac current, can be obtained by integrating the current i1 between 0 and pi or current i2 between pi and 2pi.

Output Current of Full Wave Rectifier

Output Current of Full Wave Rectifier

3.    DC Output Voltage

Average or dc value of voltage across the load is given as

DC Output Voltage of Full Wave Rectifier

DC Output Voltage of Full Wave Rectifier

4.    Root Mean Square (RMS) Value of Current

RMS or effective value of current flowing through the load resistance RL  is given as

RMS Value of Current of Full Wave Rectifier

RMS Value of Current of Full Wave Rectifier

5.    Root Mean Square (RMS) Value of Output Voltage

RMS value of voltage across the load is given as

RMS Value of Output Voltage of Full Wave Rectifier

RMS Value of Output Voltage of Full Wave Rectifier

6.    Rectification Efficiency

Power delivered to load,

Rectification Efficiency of Full Wave Rectifier

Rectification Efficiency of Full Wave Rectifier

7.    Ripple Factor

Form factor of the rectified output voltage of a full wave rectifier is given as

Ripple Factor of Full Wave Rectifier

Ripple Factor of Full Wave Rectifier

So, ripple factor, γ =  1.112 – 1) = 0.482

8.    Regulation

The dc output voltage is given as

Regulation of Full Wave Rectifier

Regulation of Full Wave Rectifier

Merits and Demerits of Full-wave Rectifier Over Half-Wave Rectifier

Merits – Lets talk about the advantages of full wave bridge rectifier over half wave version first. I can think about 4 specific merits at this point.

  • Efficiency is double for a full wave bridge rectifier. The reason is that, a half wave rectifier makes use of only one half of the input signal. A bridge rectifier makes use of both halves and hence double efficiency
  • The residual ac ripples (before filtering) is very low in the output of a bridge rectifier. The same ripple percentage is very high in half wave rectifier. A simple filter is enough to get a constant dc voltage from bridge rectifier.
  • We know the efficiency of FW bridge is double than HW rectifier. This means higher output voltage, Higher transformer utilization factor (TUF) and higher output power.

Demerits –  Full-wave rectifier needs more circuit elements and is costlier.

Merits and Demerits of Bridge Rectifier Over Center-Tap Rectifier.

A center tap rectifier is always difficult one to implement because of the special transformer involved. A center tapped transformer is costly as well. One key difference between center tap & bridge rectifier is in the number of diodes involved in construction. A center tap full wave rectifier needs only 2 diodes where as a bridge rectifier needs 4 diodes. But silicon diodes being cheaper than a center tap transformer, a bridge rectifier is much preferred solution in a DC power supply.  Following are the advantages of bridge rectifier over a center tap rectifier.

  • A bridge rectifier can be constructed with or without a transformer. If a transformer is involved, any ordinary step down/step up transformer will do the job. This luxury is not available in a center tap rectifier. Here the design of rectifier is dependent on the center tap transformer, which can not be replaced.
  • Bridge rectifier is suited for high voltage applications. The reason is the high peak inverse voltage (PIV) of bridge rectifier, when compared to the PIV of a center tap rectifier.
  • Transformer utilization factor (TUF) is higher for bridge rectifier.
Demerits of Bridge rectifier over center tap rectifier
The significant disadvantage of a bridge rectifier over center tap is the involvement of 4 diodes in the construction of bridge rectifier. In a bridge rectifier, 2 diodes conduct simultaneously on a half cycle of input. A center tap rectifier has only 1 diode conducting on one half cycle. This increases the net voltage drop across diodes in a bridge rectifier (it is double to the value of center tap).

Uses of Full wave Bridge rectifier

Full wave rectifier find uses in the construction of constant dc voltage power supplies, especially in general power supplies.  A bridge rectifier with an efficient filter is ideal for any type of general power supply applications like charging a battery, powering a dc device (like a motor, led etc) etc. However for an audio application, a general power supply may not be enough. This is because of the residual ripple factor in a bridge rectifier. There are limitations to filtering ripples. For audio applications, specially built power supplies (using IC regulators) may be ideal.

Full Wave Bridge Rectifier with Capacitor Filter

Output of full wave rectifier is not a constant DC voltage. You can observe from the output diagram that its a pulsating dc voltage with ac ripples. In real life applications, we need a power supply with smooth wave forms. In other words, we desire a DC power supply with constant output voltage. A constant output voltage from the DC power supply is very important as it directly impacts the reliability of the electronic device we connect to the power supply.

We can make the output of full wave rectifier smooth by using a filter (a capacitor filter or an inductor filter) across the diode.  In some cases an resistor-capacitor coupled filter (RC) is also used. The circuit diagram below shows a half wave rectifier with capacitor filter.

Full wave rectifier with capacitor filter

Full Wave Rectifier – with Capacitor Filter

Ripple factor in a bridge rectifier

Ripple factor is a ratio of the residual ac component to dc component in the output voltage. Ripple factor in a bridge rectifier is half than that of a half wave rectifier.


1. To explain the concepts better, we have referred several text books, especially  Principles of Electronics.
2. To create the easy to understand images, we have referred this article.
