How to Work With SPI in AVR Micro Controllers

Mathew Kevin July 10, 2017 12 Comments

Introduction

                Micro controllers support wired communication protocols. Most of the time, microcontrollers come along with internal modules that support these protocols. The commonly supported protocols are:

  • UART or USART communication
  • SPI
  • TWI
  • USI etc.

And few advanced protocols like:

  • USB
  • CAN
  • Ethernet  etc.

SPI stands for Serial Peripheral Interface and it is the simplest among all the communication protocols. 8bit data registers in the devices are connected by wires. These data registers works as shift registers and one of the device controls the data exchange inside the  SPI Network. The device or devices that controls the operation inside the network is known as the Master. For more elaboration, you may read the Wikipedia article: Serial Peripheral Interface Bus.

        There can be multiple Masters in a system. There may be multiple slaves too. The slave need not to be another micro controller. It can be an SD card, or some display device or may be some other electronic circuit. Irrespective of the device attached as a slave, it needs to get selected by master device(s) for data transfer.

        If the system is a multi-master  network, then each individual secondary master needs to be selected for mastering the SPI BUS. An SPI bus consist of two DATA lines, one clock line, and device select (or slave select) lines. The clocking signal is generated by the master in the network.

        Here, in this experiment, one system is build up to receive any character transmitted in the SPI. And it displays the character on the LCD display. So the receiver circuit is essentially a slave. As the receiver system will never transmit any data, we can keep it enabled all the time. There would be a master device that will transmit a string of character, either once, or repetitively. So let’s see, what are the available resources for this communication.

Register Description

SPI Status Register- SPSR

Bit

7

6

5

4

3

2

1

0

Bit Name

SPIF

WCOL

SPI2X

Read/Write

R

R

R

R

R

R

R

R

Initial value

0

0

0

0

0

0

0

0

Bit 7 – SPIF: SPI Interrupt Flag

When a serial transfer is complete, the SPIF Flag is set. An interrupt is generated if SPIE in SPCR is set and global interrupts are enabled. If SS is an input and is driven low when the SPI is in Master mode, this will also set the SPIF Flag. SPIF is cleared by hardware when executing the corresponding interrupt Handling Vector. Alternatively, the SPIF bit is cleared by first reading the SPI Status Register with SPIF set, then accessing the SPI Data Register (SPDR).

Bit 6 – WCOL: Write Collision Flag

The WCOL bit is set if the SPI Data Register (SPDR) is written during a data transfer. The WCOL bit (and the SPIF bit) are cleared by first reading the SPI Status Register with WCOL set, and then accessing the SPI Data Register.

Bit 5..1 – Res: Reserved Bits
Bit 0 – SPI2X: Double SPI Speed Bit

When this bit is written logic one the SPI speed (SCK Frequency) will be doubled when the SPI is in Master mode . This means that the minimum SCK period will be 2 CPU clock periods. When the SPI is configured as Slave, the SPI is only guaranteed to work at  or lower.

SPI Control Register- SPCR

Bit

7

6

5

4

3

2

1

0

Bit Name

SPIE

SPE

DORD

MSTR

CPOL

CPHA

SPR1

SPR0

Read/Write

RW

RW

RW

RW

RW

RW

RW

RW

Initial value

0

0

0

0

0

0

0

0

Bit 7 – SPIE: SPI Interrupt Enable

This bit causes the SPI interrupt to be executed if SPIF bit in the SPSR Register is set and the if the global interrupt enable bit in SREG is set.

Bit 6 – SPE: SPI Enable

When the SPE bit is written to one, the SPI is enabled. This bit must be set to enable any SPI operations.

Bit 5 – DORD: Data Order
Bit 4 – MSTR: Master/Slave Select

This bit selects Master SPI mode when written to one, and Slave SPI mode when written logic zero. If SS is configured as an input and is driven low while MSTR is set, MSTR will be cleared, and SPIF in SPSR will become set. The user will then have to set MSTR to re-enable SPI Master mode.

 Bit 3 – CPOL: Clock Polarity
Bit 2 – CPHA: Clock Phase
 Bits 1, 0 – SPR1, SPR0: SPI Clock Rate Select 1 and 0

These two bits control the SCK rate of the device configured as a Master. SPR1 and SPR0 have no effect on the Slave. The relationship between SCK and the Oscillator Clock frequency  is shown in the following table:

Relationship Between SCK and the Oscillator Frequency

SPI2X

SPR1

SPR0

SCK Frequency

0

0

0

0

0

1

0

1

0

0

1

1

1

0

0

1

0

1

1

1

0

1

1

1

The SPI Data Register is a Read/Write Register used for data transfer between the Register File and the SPI Shift Register. Writing to the register initiates data transmission. Reading the register causes the Shift Register Receive buffer to be read.

SPI Data Register- SPCR

Bit

7

6

5

4

3

2

1

0

MSB

LSB

Read/Write

RW

RW

RW

RW

RW

RW

RW

RW

Initial value

X

X

X

X

X

X

X

X

X: Undefined

Points to be Noted.

  1. It is to be noted that when SPI is enabled, not all the pin function in the SPI ports are over ridden. Operations differ. Let’s have look on the effects.

Modes

Master

Secondary master in Multi-Master mode
SS Driven LOW (Input To SS=0)

Secondary master in Multi-Master mode
SS Driven HIGH (Input To SS=1)

Slave Mode

Conditions

The MSTR bit in SPCR is set (i.e. MSTR=1)
& the bit in DDR Relevant to SS is set

The MSTR bit in SPCR is set (i.e. MSTR=1)
& the bit in DDR Relevant to SS is reset (i.e. 0)

The MSTR bit in SPCR is reset (i.e. MSTR=0)

MOSI

The relevant DDR bit must be set to 1

SPI overrides the pin functionality
MOSI becomes Input

The relevant DDR bit must be set to 1
MOSI becomes Output

SPI overrides the pin functionality and configures the DDR bit to 0

MISO

SPI overrides the pin functionality and configures the DDR bit to 0

The relevant DDR bit must be set to 1
MISO Remains Input

The relevant DDR bit must be set to 1
MISO Remains Input

The relevant DDR bit must be set to 1

SCK

The relevant DDR bit must be set to 1

SPI over rides the pin functionality
SCK Becomes Input

The relevant DDR bit must be set to 1
SCK Becomes Output

SPI overrides the pin functionality and configures the DDR bit to 0

  (Slave select)

The relevant DDR bit must be set to 1

SS is Configured as Input
Input To the SS pin is a logical ‘0’

SS is Configured as Input
Input To the SS pin is a logical ‘1’

SPI overrides the pin functionality and configures the DDR bit to 0. The clock generator unit is Stopped

DDR: Data Direction Register
  • To Enable SPI operation these simple steps are sufficient

                a.            SET the SPE bit in SPCR register.

                 b.           SET or RESET the MSTR bit in SPCR register

                c.             Configure the Data Direction Register (DDR) of the digital I/O port to which the SPI belongs to. Configure it as required
                d.             It’s not necessary to configure the Prescaler bits.

  • SPI exchanges the contents of the SPDR of master and slave. So precautions should be taken so that garbage contents doesn’t get transmitted, or used.

Circuit Diagram

Refer this PDF file :- Working with SPI

Fig: Circuit Diagram

Codes

#ifndef _PROJECT_H

#define _PROJECT_H

#ifndef _AVR_IO_H_

#include<avr/io.h>

#endif

#ifndef _UTIL_DELAY_H_

#include<delay.h>

#endif

#ifndef _STDIO_H_

#include<stdio.h>

#endif

#ifndef DPDDR

#define DPDDR DDRC

#endif

#ifndef CPDDR

#define CPDDR DDRD

#endif

#ifndef CPORT

#define CPORT PORTD

#endif

#ifndef DPORT

#define DPORT PORTC

#endif

#ifndef RS

#define RS PD2

#endif

#ifndef EN

#define EN PD3

#endif

#define DEL1 10

#define DEL2 45

int LCD(char ch, FILE *fp);

int LCD(char ch,FILE *fp)

{

DPORT=(ch>>4)&0x0f;

CPORT=(1<

_delay_us(DEL1);

CPORT=(1<

_delay_us(DEL1);

DPORT=(ch&0x0f);

CPORT=(1<

_delay_us(DEL1);

CPORT=(14)&0x0f;

CPORT=(0<

_delay_us(DEL1);

CPORT=(0<

_delay_us(DEL1);

DPORT=(ch&0x0f);

CPORT=(0<

_delay_us(DEL1);

CPORT=(0<

_delay_us(DEL2);

_delay_us(DEL2);

if(ch==0x01||ch==0x02)

_delay_ms(5);

}

void initLCD()

{

DDRC =0x0f;

DDRD =(1<

LCDcmd(0x28);

LCDcmd(0x0f);

LCDcmd(0x01);

LCDcmd(0x02);

stdout =fdevopen(LCD,NULL);

}

#endif //_PROJECT_H

Text : Code of the header file ‘LCD83.h’

 #define F_CPU 1000000
#include#include#define DDR_SPI DDRB

#define PORT_SPI PORTB

#define DD_SS PB2

#define DD_MOSI PB3

#define DD_MISO PB4

#define DD_SCK PB5

void SPI_MasterInit(void)

{

DDR_SPI = (1<

SPCR = (1<

}

void SPI_Transmit(char cData)

{

PORT_SPI|=(1<

SPDR = cData;

while(!(SPSR & (1<

PORT_SPI&=(~(1<

}

void SEND(char *str)

{

int i=0;

while(str[i]!=”)

{

SPI_Transmit(str[i]);

i++;

_delay_ms(30);

}

}

int main()

{

SPI_MasterInit();

while(1)

{

SEND(” Circuits Today”);

_delay_ms(1000);

}

return 0;

}

Text : Code of the Transmitter Micro-Controller (Configured as Master)

#define F_CPU 1000000#include#include#define DDR_SPI DDRB

#define PORT_SPI PORTB

#define DD_SS PB2

#define DD_MOSI PB3

#define DD_MISO PB4

#define DD_SCK PB5

void SPI_SlaveInit(void)

{ DDR_SPI = (1<

SPCR = (1<

}

char SPI_SlaveReceive(void)

{

while(!(SPSR & (1<=15)

{

printf(” “);

LCDcmd(0xc0);

i=0;

}

}

return 0;

}

Text : Code of the Receiver Micro-Controller (Configured as Slave)

Media

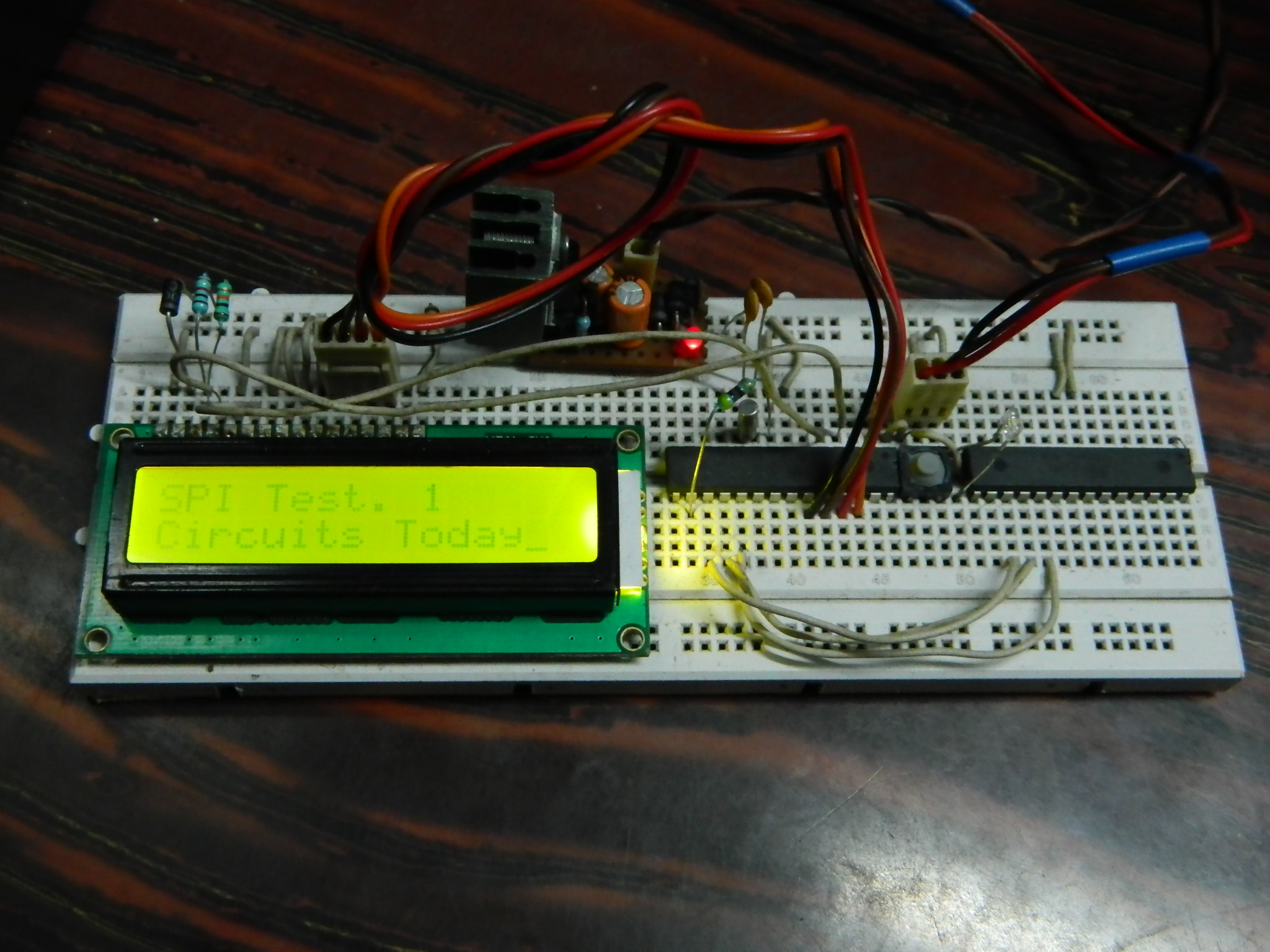

Picture: The Experimental Set-up on the Bread Board

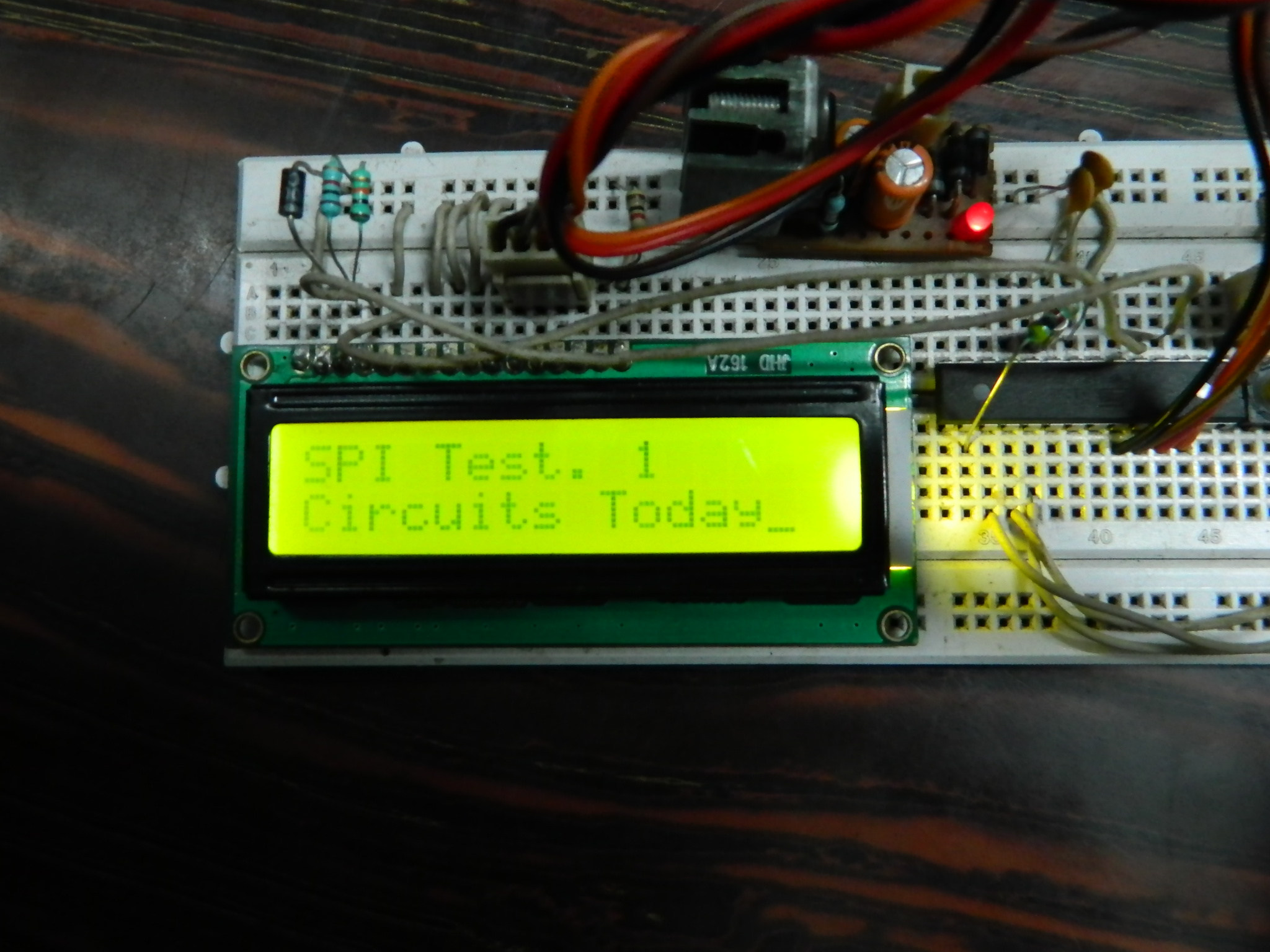

Picture: A Closer Look to the Output
So here you can see the video of my work!
