Interfacing pressure sensor to arduino

Interfacing pressure sensor to arduino SPD005G.

This article is about interfacing  pressure sensor to arduino. The pressure sensor used here is SPD005G from Smartec . SPD (Smart Pressure Device) is a series of silicon based pressure sensors suitable for industrial as well as house hold applications. These sensors are generally available in plastic inline or dual inline packaging. SPD sensors are generally available in two operation modes namely gauge type and absolute type. In gauge type the pressure is measured with respect to the atmospheric pressure. There is  a small vent on the package for getting contact with the atmosphere. In absolute type, the pressure is measured with respect to vacuum. A small vacuum chamber is incorporated into the package during fabrication. Typical applications of SPD005G are medical systems, BP monitoring, air conditioning systems, process control, hand held pressure sensors  etc.

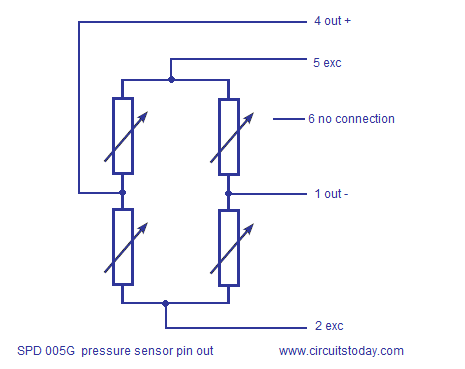

The sensor used here ie; SPD005G is a gauge type sensor. There are actually four sensing elements inside the SPD005G and they are arranged like a Wheatstone bridge. The sensing range of SPD005G is 0 –  0.350 x 105 Pa ( ie; 0 – 14.50 psi). The internal schematic and pin out of an SPD005G pressure sensor is shown below.

spd005g pressure sensor

The bridge excitation voltage is given between pins 5 and 2. The excitation voltage can be AC or DC and the maximum DC voltage is 5V. The bridge output is available across pins 4 and 2. Pin 6 has no connection and it is not used. The full circuit diagram for interfacing pressure sensor to arduino is given below.

Circuit diagram.

arduino pressure sensor


An instrumentation amplifier based on quad opamp LM324 is used for conditioning the output voltage from the pressure sensor.The instrumentation amplifier amplifier the differential voltage between output pin 4 and 1 of the pressure sensor. IC1A and IC1B  serves as the high impedance input buffer of the instrumentation amplifier and IC1C sets the gain of the instrumentation. The equation for gain of the instrumentation amplifier is G=(1+(2R1/Rg))*(R3/R2). With the used components the gain here is around 137. The output of the instrumentation amplifier is connected to the analog input pin A0 of the arduino. The arduino digitizes this input voltage, converts it into milli volts and displays it on the LCD display. LED D2 is just a power ON indicator. Potentiometer R4 can be used to adjust the contrast of the display. Resistor R5 limits the current through the back light LED.  The program for interfacing pressure sensor to arduino is given below.


#include <LiquidCrystal.h>
int sensor=A0;
int dig_out;
float millivolt;
LiquidCrystal lcd(7, 6, 5, 4, 3, 2); // sets the lcd interfacing pins
void setup()
pinMode(sensor,INPUT); // sets A0 as input
lcd.begin(16, 2);      // initializes the lcd

void loop()
dig_out=analogRead(sensor); // reads the input voltage
millivolt=(dig_out*4.882);  // converts the reading to millivolt
lcd.print("Pressure Sensor"); // prints "Pressure Sensor"
lcd.print(millivolt); // prints the input voltage
lcd.print("mV");  // prints the"mV" notation
delay(300);       // 300 mS delay
lcd.clear();      // clears screen
