Worlds Smallest Single Atom Transistor
Worlds Smallest Single Atom Transistor

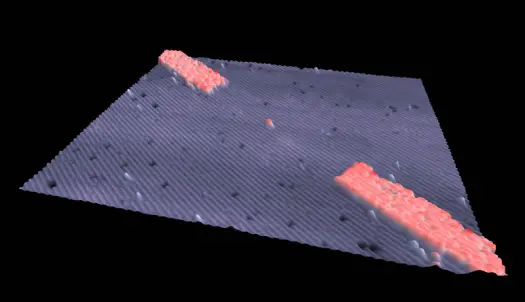

A group of researchers including Michelle Simmons and her colleagues developed a single phosphorus atom transistor using a Scanning Tunneling Microscope (STM) at the University of New South Wales. The 3-dimensional perspective of the device is shown in the figure above. Till date, this is known to be the smallest transistor ever built, and ever to be built in future. Thus, this device will be known to be the stepping stone to quantum computers.

The single phosphorus atom device was manipulated using the STM. Using the STM to design and control nano-scale circuits was very difficult. But, the researchers used a number of STM combinations along with unique etching skills to make a transistor with a precise location on a silicon surface. Though many other single atom transistors have been developed before, this is the first time that the researchers were able to apply a small voltage in a controllable manner. As shown in the image, the single atom is placed in the center and the red shaded regions form the electrical leads.

A silicon atom out of a six atom group is interchanged with one phosphorus atom. The atom is placed between source and drain terminals. The distance between them is less than 20 nanometers. The gate electrodes are almost 100 nanometers apart. The changes in the electron states were studied after applying a small voltage between the sets of electrodes. The output produced clearly showed the characteristics of a Field Effect Transistor (FET). That is, the output current produced depends on the voltage applied.

This device has proved to be controlled with nanowires and can be packed very close to each other to build powerful microprocessors. But, the only disadvantage is that the transistor characteristics were successful only in highly cold temperatures. That is, temperatures of that of liquid helium (-391 degree Fahrenheit). The researchers are trying to rectify this problem.
