When audio signals are transmitted over thousands of kilometres through radio transmission, the audio frequencies that lie within the frequency range of 15 Hertz to 20 KiloHertz has very small signal power and thus cannot be transmitted via the antenna for communication purposes. The radiation of electrical energy is only possible at frequencies above 20 KiloHertz. The main advantage of high-frequency signals is that they can be transmitted over very long distances by dissipating very small power.

Thus, the audio signals must be sent along with the high-frequency signals for communication. This can be done by superimposing electrical audio signals on a high-frequency wave called the carrier wave. The carrier wave is generated from radio-frequency oscillators and is undamped in nature. Thus, when the audio-frequency signal is superimposed on a carrier wave, the resulting wave gets all the characteristics of the audio signal. The method of superimposing an audio signal over the carrier wave is called modulation.

After modulation is done, the resulting wave can be given to the antenna and the signal can be transmitted over a long distance.

The principle of Transmission and Reception

The speech or music that is to be broadcasted consists of a series of compressions and rarefactions. A microphone acts as a transducer to convert these parameters into its corresponding varying current measures. With the difference in the measure of sound, the corresponding change in the frequency of the electrical current is also produced, and they lie in the audio-frequency range and therefore, it is known as an audio-frequency signal. Since the signal strength of this low-frequency signal is less, it has to be given to an audio-frequency amplifier to strengthen the signal to a desired level.

These low-frequency signals cannot be sent over long distances by radiating it out directly from the aerial. Thus, the audio frequency signal has to be modulated with a radio-frequency carrier wave. The carrier wave can be produced using any oscillator. The radio frequency waves have a constant amplitude and travel through space with the velocity of light. This is why you can see and hear live broadcasts with very little delay.

The resulting modulated wave is radiated out of the transmitter antenna and travels through space until it reaches the receiver antenna. The receiving aerial consists of a receiver that separates both the carrier signal and audio-frequency signal. The process of the receiver by which the audio frequency is separated from the carrier signal is called demodulation. The demodulated audio signal is sent to the loudspeakers for the user to hear. If there was no demodulation, the high-frequency currents would have reached the loudspeaker and would have caused signal errors. Radiofrequency current also cannot be heard by humans. This shows why modulation and demodulation are important in a communication system.

What is Modulation?

The best way to define modulation is:

The process of impressing low-frequency information to be transmitted on to a high-frequency wave, called the carrier wave, by changing the characteristics of either its amplitude, frequency or phase angle is called modulation.

Another definition for modulation is:

The process of altering the characteristics of the amplitude, frequency, or phase angle of the high-frequency signal in accordance with the instantaneous value of the modulating wave is called modulation.

Functions of the Carrier Wave

The main function of the carrier wave is to carry the audio or video signal from the transmitter to the receiver. The wave that is resulted due to superimposition of audio signal and carrier wave is called the modulated wave.

Need for Modulation

The reason why low-frequency signals cannot be transmitted over long distances through space is listed below:

  1. Short Operating Range – When a wave has a large frequency, the energy associated with it will also be large. Thus low-frequency signals have less power that does not enable them to travel over long distances.
  2. Poor Radiation Efficiency – The radiation efficiency becomes very poor for low-frequency signals.
  3. Mutual Interference – If all audio frequencies are sent continuously from different sources, they would all get mixed up and cause erroneous interference air. If modulation is done, each signal will occupy different frequency levels and can be transmitted simultaneously without any error.
  4. Huge Antenna Requirement – For a effective signal transmission, the sending and receiving antenna should be at least 1/4th of the wavelength of the signal. Thus, for small frequencies, the antenna will have kilometres of length. But if the signal has the range of MegaHertz frequency, then the antenna size would be less. The carrier wave cannot be used alone for transmission purposes. Since its amplitude, frequency, and phase angle are constant with respect to some preference.

Types of Modulation

The sinusoidal carrier wave can be given by the equation

vc = Vc Sin(wct + θ) = Vc Sin(2fct + θ)

Vc  – Maximum Value

fc – Frequency

θ  – Phase Relation

Since the three variables are the amplitude, frequency, and phase angle, the modulation can be done by varying any one of them. Thus there are three modulation types namely:

Click on the links given above to know more.

In India, radio broadcasting is done through amplitude modulation. Television broadcasting is done with amplitude modulation for video signals and frequency modulation for audio signals.

Amplitude Modulation (AM)


The method of varying amplitude of a high-frequency carrier wave in accordance with the information to be transmitted, keeping the frequency and phase of the carrier wave unchanged is called Amplitude Modulation. The information is considered as the modulating signal and it is superimposed on the carrier wave by applying both of them to the modulator. The detailed diagram showing the amplitude modulation process is given below.

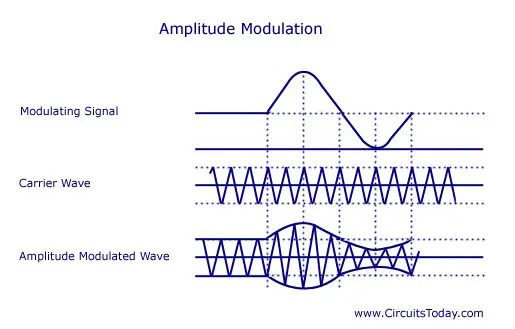

Amplitude Modulation
Amplitude Modulation

As shown above, the carrier wave has positive and negative half cycles. Both these cycles are varied according to the information to be sent. The carrier then consists of sine waves whose amplitudes follow the amplitude variations of the modulating wave. The carrier is kept in an envelope formed by the modulating wave. From the figure, you can also see that the amplitude variation of the high-frequency carrier is at the signal frequency and the frequency of the carrier wave is the same as the frequency of the resulting wave.

Analysis of Amplitude Modulation Carrier Wave

Let vc = Vc Sin wct

vm = Vm Sin wmt

vc – the Instantaneous value of the carrier

Vc – Peak value of the carrier

Wc – Angular velocity of the carrier

vm – the Instantaneous value of the modulating signal

Vm – Maximum value of the modulating signal

wm – Angular velocity  of the modulating signal

fm – Modulating signal frequency

It must be noted that the phase angle remains constant in this process. Thus it can be ignored. The amplitude of the carrier wave varies at  fm.

The amplitude modulated wave is given by the equation

A = Vc + vm = Vc + Vm Sin wmt = Vc [1+ (Vm/Vc Sin wmt)]

= Vc (1 + mSin wmt)

m – Modulation Index. The ratio of Vm/Vc.

The instantaneous value of amplitude modulated wave is given by the equation

v = A Sin wct = Vc (1 + m Sin wmt) Sin wct

= Vc Sin wct + mVc (Sin wmt Sin wct)

v = Vc Sin wct + [mVc/2 Cos (wc-wm)t – mVc/2 Cos (wc + wm)t]

The above equation represents the sum of three sine waves. One with an amplitude of Vc and a frequency of wc/2 , the second one with an amplitude of mVc/2 and frequency of (wc – wm)/2 and the third one with an amplitude of mVc/2 and a frequency of (wc + wm)/2 .

In practice the angular velocity of the carrier is known to be greater than the angular velocity of the modulating signal (wc >> wm). Thus, the second and third cosine equations are more close to the carrier frequency. The equation is represented graphically as shown below.

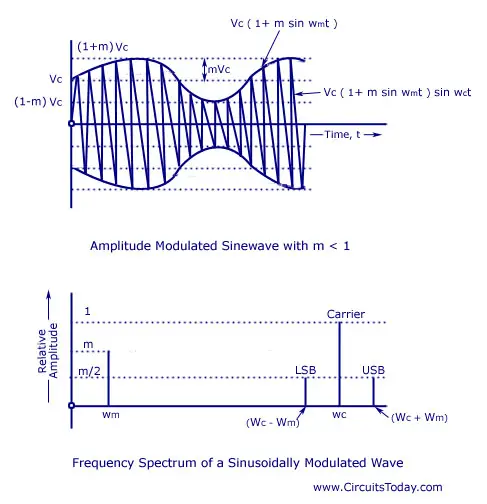

Amplitude Modulation Frequency Spectrum
Amplitude Modulation Frequency Spectrum

Frequency Spectrum of AM Wave

Lower side frequency – (wc – wm)/2

Upper side frequency – (wc +wm)/2

The frequency components present in the AM wave are represented by vertical lines approximately located along the frequency axis. The height of each vertical line is drawn in proportion to its amplitude. Since the angular velocity of the carrier is greater than the angular velocity of the modulating signal, the amplitude of sideband frequencies can never exceed half of the carrier amplitude.

Thus there will not be any change in the original frequency, but the sideband frequencies (wc – wm)/2  and (wc +wm)/2  will be changed. The former is called the upper sideband (USB) frequency and the later is known as lower sideband (LSB) frequency.

Since the signal frequency wm/2  is present in the sidebands, it is clear that the carrier voltage component does not transmit any information.

Two side banded frequencies will be produced when a carrier is amplitude modulated by a single frequency. That is, an AM wave has a bandwidth from (wc – wm)/2  to (wc +wm)/2 , that is, 2wm/2  or twice the signal frequency is produced. When a modulating signal has more than one frequency, two sideband frequencies are produced by every frequency. Similarly for two frequencies of the modulating signal 2 LSB’s and 2 USB’s frequencies will be produced.

The sidebands of frequencies present above the carrier frequency will be the same as the ones presented below. The sideband frequencies present above the carrier frequency is known to be the upper sideband and all those below the carrier frequency belong to the lower sideband. The USB frequencies represent the some of the individual modulating frequencies and the LSB frequencies represent the difference between the modulating frequency and the carrier frequency.  The total bandwidth is represented in terms of the higher modulating frequency and is equal to twice this frequency.

Modulation Index (m)

The ratio between the amplitude change of carrier wave to the amplitude of the normal carrier wave is called Modulation index. It is represented by the letter ‘m’.

It can also be defined as the range in which the amplitude of the carrier wave is varied by the modulating signal.

m = Vm/Vc

Percentage modulation, %m = m*100 = Vm/Vc * 100

The percentage modulation lies between 0 and 80%.

Another way of expressing the modulation index is in terms of the maximum and minimum values of the amplitude of the modulated carrier wave. This is shown in the figure below.

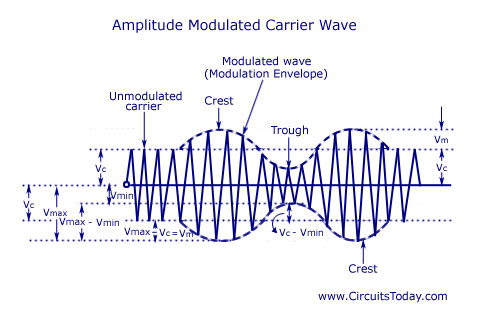

Amplitude Modulated Carrier Wave
Amplitude Modulated Carrier Wave

From the figure we know that

2 Vin = Vmax – Vmin

Vin = (Vmax – Vmin)/2

Vc = Vmax – Vin

= Vmax – (Vmax-Vmin)/2

=(Vmax + Vmin)/2

Substituting the values of Vm and Vc in the equation m = Vm/Vc , we get

M = Vmax – Vmin/Vmax + Vmin

As told earlier, the value of ‘m’ lies between 0 and 0.8. The value of m determines the strength and the quality of the transmitted signal. In an AM wave, the signal is contained in the variations of the carrier amplitude. The audio signal transmitted will be weak if the carrier wave is only modulated to a very small degree. But if the value of m exceeds unity, the transmitter output produces erroneous distortion.

Power Relations in an AM wave

A modulated wave has more power than had by the carrier wave before modulating. The total power components in amplitude modulation can be written as:

Ptotal = Pcarrier + PLSB + PUSB

Considering additional resistance like antenna resistance R.

Pcarrier = [(Vc/√2)/R]2 = V2C/2R

Each side band has a value of m/2 Vc and r.m.s value of mVc/2√2. Hence power in LSB and USB can be written as

PLSB = PUSB = (mVc/2√2)2/R = m2/4*V2C/2R = m2/4 Pcarrier

Ptotal = V2C/2R + [m2/4*V2C/2R] + [m2/4*V2C/2R] = V2C/2R (1 + m2/2) = Pcarrier (1 + m2/2)

In some applications, the carrier is simultaneously modulated by several sinusoidal modulating signals. In such a case, the total modulation index is given as

Mt = √(m12 + m22 + m32 + m42 + …..)

If Ic and It are the r.m.s values of unmodulated current and total modulated current and R is the resistance through which these current flow, then

Ptotal/Pcarrier = (It.R/Ic.R)2 = (It/Ic)2

Ptotal/Pcarrier = (1 + m2/2)

It/Ic = 1 + m2/2

Limitations of Amplitude Modulation

  1. Low Efficiency- Since the useful power that lies in the small bands is quite small, so the efficiency of AM system is low.
  2. Limited Operating Range – The range of operation is small due to low efficiency. Thus, transmission of signals is difficult.
  3. Noise in Reception – As the radio receiver finds it difficult to distinguish between the amplitude variations that represent noise and those with the signals, heavy noise is prone to occur in its reception.
  4. Poor Audio Quality – To obtain high fidelity reception, all audio frequencies till 15 KiloHertz must be reproduced and this necessitates the bandwidth of 10 KiloHertz to minimise the interference from the adjacent broadcasting stations. Therefore in AM broadcasting stations, audio quality is known to be poor.
